   eTSE-B8942.800*900*2000,42U

eTSE-B8942.800*900*2000,42U





  • Accord with ANSI/EIAR-310-D,DIN41491;PART1,IEC297-2,DIN41494;DART7,GB/T3047-92 standard, compatible 19″international standard, metric system standard & ETSI standard

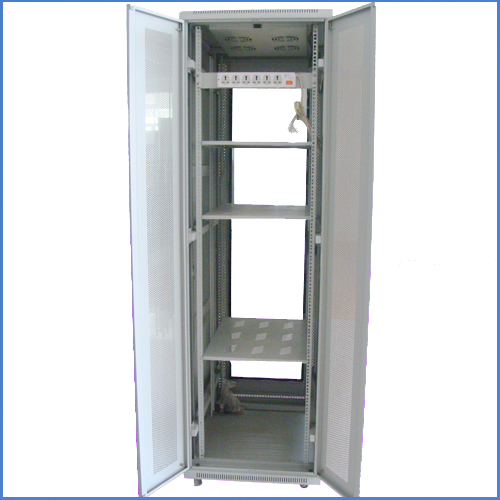

  • Vented lockable front/back doors and lockable side panel
  • The back door is a planar mesh double-door with magnet inside for lockingDouble rear door take less space whenbeing open.
  • Easy cabling management. Cable entry provided from top/bottom and front/back.
  • There is rubber cover on the top .
  • Surface treatment: deoiling, phosphorization, electrophoresis bottom paint, static electricity spray powder;
  • Main color is black or computer gray
  • High quality SPCC, thickness: corner edge:2.0mm; others:1.0-1.2mm
  • International quality & standard cabinet accessories
  • Specification & hole variation can be customized
    eTSE-B series Server Cabinets Order Code
    Width(mm)
    Content
     depth(mm)
     600
    800
     900
     960
     600
    47u
     eTSE6647
     eTSE6847
    eTSE6947
     eTSE6A47
    42u
     eTSE6642
     eTSE6842
    eTSE6942
     eTSE6A42
    37u
     eTSE6637
     eTSE6837
    eTSE6937
     eTSE6A37
     800
    47u
     eTSE6847
     eTSE8847
     eTSE8947
      eTSE8A47
    42u
     eTSE6842
     eTSE8842
     eTSE8942
      eTSE8A42
    37u
     eTSE6837
     eTSE8837
    eTSE8937
     eTSE8A37
  •
