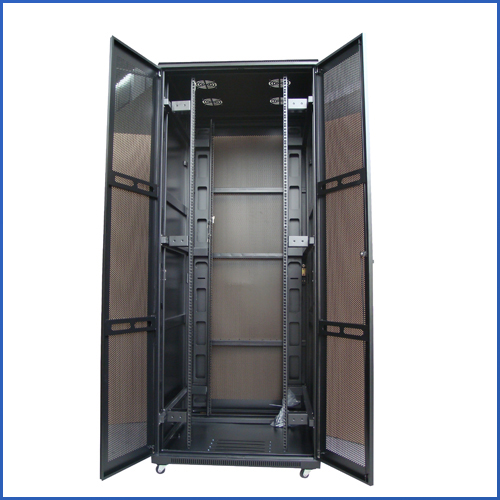

   eTSE-A8942,800*900*2000,42U

eTSE-A8942,800*900*2000,42U





  • Accord with ANSI/EIAR-310-D,DIN41491;PART1,IEC297-2,DIN41494;DART7,GB/T3047-92 standard,compatible 19″international standard, metric system standard & ETSI standard
  • The frame is made of 9-curved model steel,welded by the high quality professional 3-ways-connected structure,whole strong structure,can bear heavy load

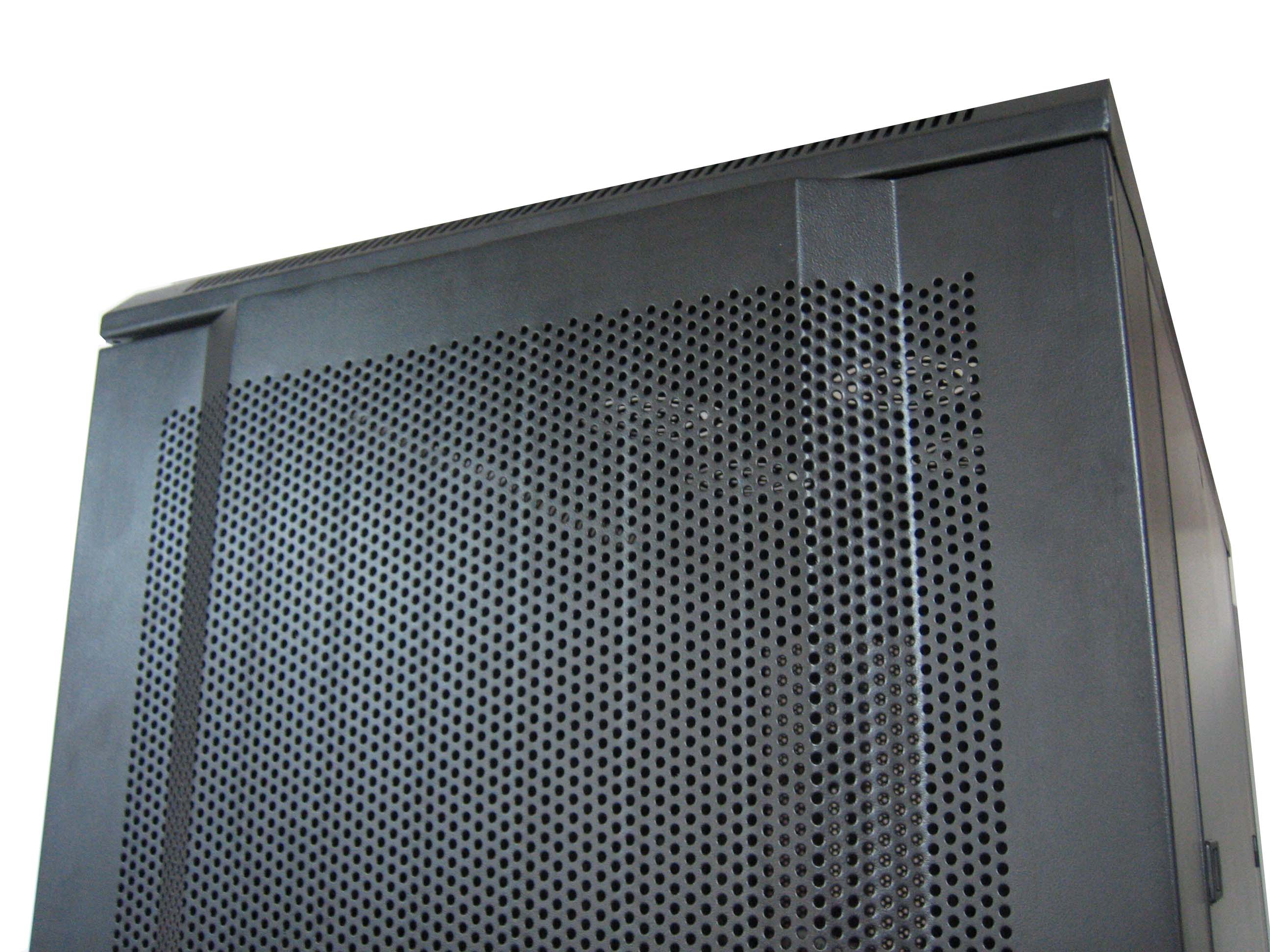

  • Using high density mesh in front & back doors to keep ventilated
  • Fashion color of safety glass is optional front door
  • Easy install & remove side doors,bring convenience
  • Can be assembled the universal truckles & supporting feet at the same time,can be easy fastened or moved
  • Interchangeable door hinge
  • Top cable entry has rubber cover
  • Abjustable depth (unit:25mm),adjustable high of capability (uint:1U)
  • Surface treatment:deoiling,phosphorization,electrophoresis bottom paint,static electricity spray powder
  • Main color is computer gray or black
  • High quality cold rolling plate, thickness:corner:2.0mm; others:1.0-1.2mm
  • International quality & standard cabinet accessories
  • Specification & hole variation can be customized

eTSE-A series Server Racks Order Code

Width(mm)

Content

 depth(mm)

 600

800

 900

 960

 600

47u

 eTSE6647

 eTSE6847

eTSE6947

 eTSE6A47

42u

 eTSE6642

 eTSE6842

eTSE6942

 eTSE6A42

37u

 eTSE6637

 eTSE6837

eTSE6937

 eTSE6A37

 800

47u

 eTSE6847

 eTSE8847

 eTSE8947

  eTSE8A47

42u

 eTSE6842

 eTSE8842

 eTSE8942

  eTSE8A42

37u

 eTSE6837

 eTSE8837

eTSE8937

 eTSE8A37
