Features：
1: super 1.2mm/SGCC refining, plastic picture frames, thick solid.
2: The panel high-intensity paint, wear non-foaming, non-Diaoqi.
3: Compatible 12 "* 13" and under a variety of motherboards and ATX Power Supply 2U length.
4: Configure the nine hot-pluggable hard drive bays, you can use RAID5, RAID10 so good performance of disk arrays with redundant way for users to expand storage space provides a good reliability.
5: The standard of 4 * 8025 motherboard CPU fan, but also according to user needs such as fans choose to use 8038.
6: using fluid dynamics theory, the design of ventilation cooling system, heat dissipation good effect.
7: using (EMI) design, anti-electromagnetic radiation interference
8: PCI expansion slot with full-height horizontal add / half-height vertical card designed to provide users with three full-height card, or six half-height cards to install bits.
9: Hard disk portable design, backplane-compatible SAS / SATA backplane installed, you can also choose hot-swappable and non-hot plug functionality.
10: Note: Product dimensions without hanging ear size of the handle.

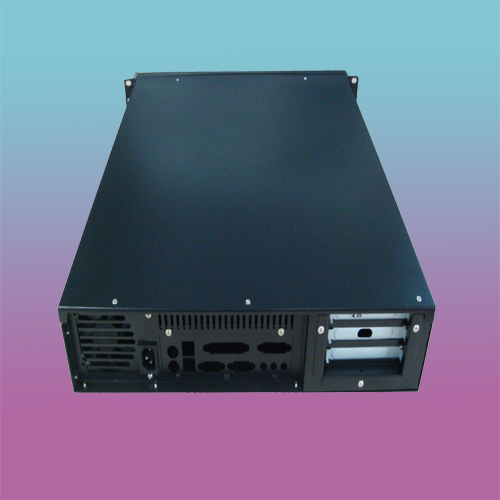

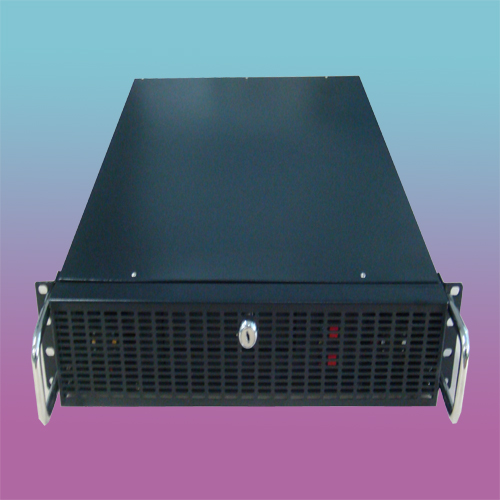

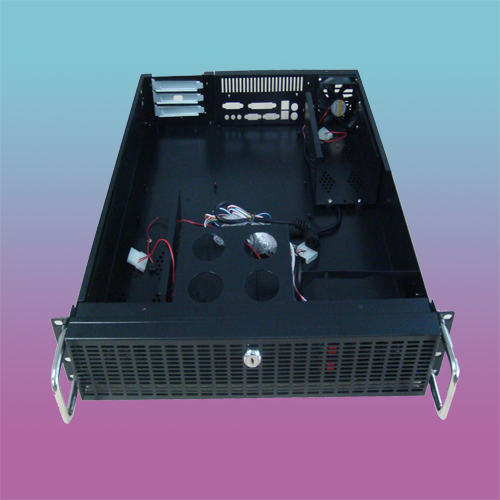

Picture only for reference, please to sell real subject;
|
eT2PC58W |
|
Material |
High-grade SGCC, thickness with 1.2m |
|
D*W*H(mm) |
575*480*90 |
|
Packing(mm) |
655*545*155 |
|
G.W.（KG) |
10.5 |
|
Specification |
Quantity(unit) |
|
Mainboard |
12"×13" |
1 |
|
CPU types |
Intel/AMD |
1 |
|
Drive frame |
3.5"HDD (hot-swap) |
|
|
CD-ROM |
|
|
3.5”FDD |
|
|
Front panel |
USB2.0 port |
|
|
Light switch plate |
|
|
Alarm indicator (HDD) |
|
|
Power supply |
ATX (2U) power supply |
2 |
|
I/O rear window |
Onboard Device |
0 |
|
Backplane support |
SATAII/SAS |
|
|
Cooling fan |
8025*4（standard） |
3 |
|
Sliding rail |
Supporting |
1 |
|
Expansion slot |
|
3 |
