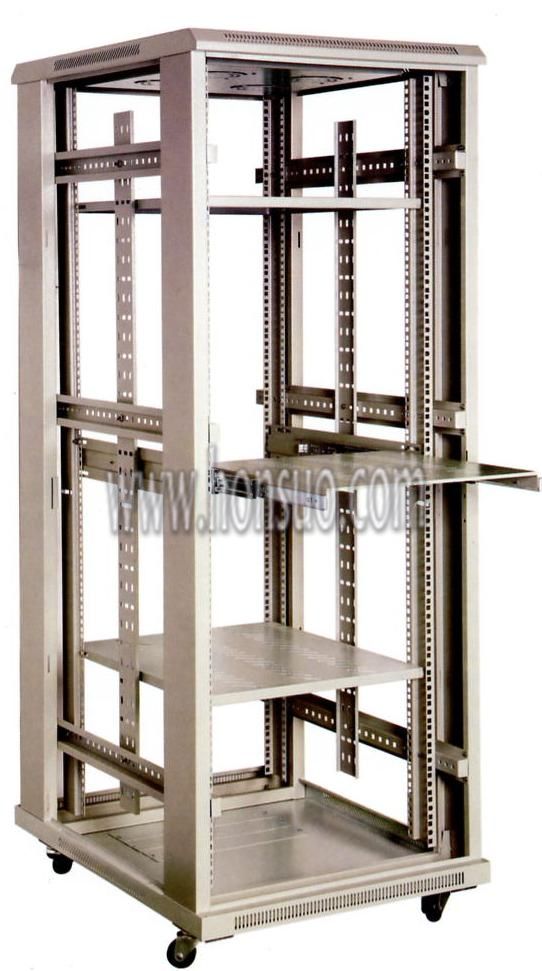

| eTSE-B8942.800*900*2000,42U |
|
|
| |
Accord with ANSI/EIAR-310-D,DIN41491;PART1,IEC297-2,DIN41494;DART7,GB/T3047-92 standard, compatible 19″international standard, metric system standard & ETSI standard

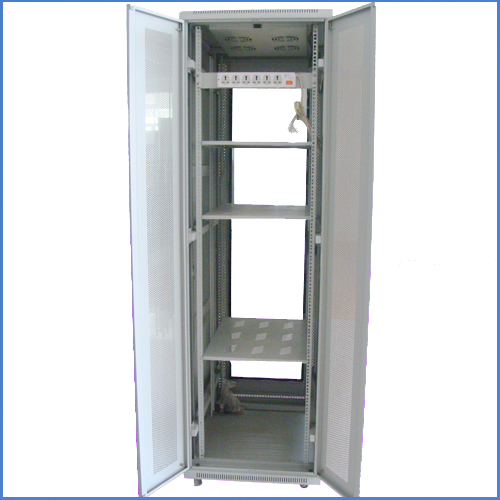

Vented lockable front/back doors and lockable side panel
The back door is a planar mesh double-door with magnet inside for lockingDouble rear door take less space whenbeing open.
Easy cabling management. Cable entry provided from top/bottom and front/back.
There is rubber cover on the top .
Surface treatment: deoiling, phosphorization, electrophoresis bottom paint, static electricity spray powder;
Main color is black or computer gray
High quality SPCC, thickness: corner edge:2.0mm; others:1.0-1.2mm
International quality & standard cabinet accessories
Specification & hole variation can be customized
|
eTSE-B series Server Cabinets Order Code |
|
Width(mm) |
Content |
depth(mm) |
|
600 |
800 |
900 |
960 |
|
600 |
47u |
eTSE6647 |
eTSE6847 |
eTSE6947 |
eTSE6A47 |
|
42u |
eTSE6642 |
eTSE6842 |
eTSE6942 |
eTSE6A42 |
|
37u |
eTSE6637 |
eTSE6837 |
eTSE6937 |
eTSE6A37 |
|
800 |
47u |
eTSE6847 |
eTSE8847 |
eTSE8947 |
eTSE8A47 |
|
42u |
eTSE6842 |
eTSE8842 |
eTSE8942 |
eTSE8A42 |
|
37u |
eTSE6837 |
eTSE8837 |
eTSE8937 |
eTSE8A37 | |
|
